Using Sample Data: The examples on this page use fields from our sample dataset. Download it and create an evaluation with it to follow along with this tutorial.

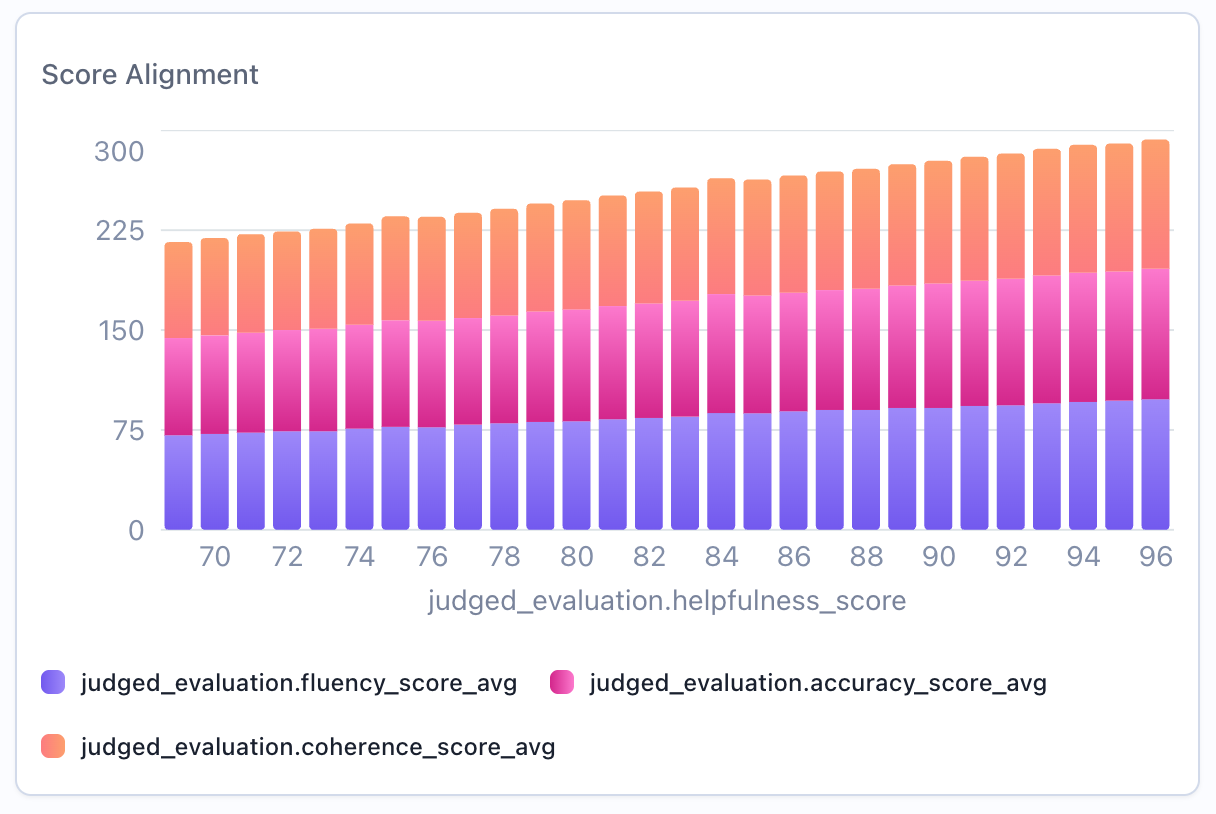

Histogram Widget Example

​
When to Use

Use histogram widgets to:
  • Show value distributions (groups data by distinct values)
  • Visualize frequency counts or aggregated metrics
  • Identify patterns in numerical data
  • Display aggregated data in a distribution format

​
Configuration

​
Required Fields

​
title
string
required
Widget display name shown on the dashboard
​
type
string
required
Must be set to “histogram”
​
query
object
required
SeriesQuery selecting the column

​
X-Axis Configuration (One Required)

You must provide either x_column or x_column_group, but not both:
​
config.x_column
string
Single column name to group by for the x-axis. The histogram displays distinct values from this column.Example: "overall_score" - groups by each score value (75, 80, 85, etc.)
​
config.x_column_group
string[]
Array of column names for multi-dimensional grouping. Creates separate distributions for each combination.Example: ["agent_name"] - creates separate distributions for each agentNote: Multi-dimensional grouping creates overlaid or stacked distributions for comparison.

​
Optional Config Fields

​
config.stacked
boolean
default:"true"
Controls whether multiple distributions are stacked or overlaid.
  • true (default): Stack distributions on top of each other
  • false: Overlay distributions for easier comparison
​
config.show_value_labels
boolean
default:"false"
When true, each bar’s value is rendered directly on the chart so you don’t have to hover to read it.Value labels apply to single-series histograms only (those with one aggregation). They are ignored on multi-series histograms, which use a legend instead.

​
Query Requirements

Histogram widgets require a SeriesQuery with:
  • Select the column you want to group by (becomes the x-axis)
  • Can include aggregations (COUNT, SUM, AVG, etc.) for the y-axis
  • If no aggregation is specified, COUNT is used by default
  • Can include filter to narrow the dataset

​
Creating in the UI

1

Open Widget Creator

From your dashboard, click “Add Widget” and select “Histogram”
2

Enter Title

Give your histogram a descriptive name (e.g., “Score Distribution”)
3

Select Column

Choose the column to group by (this will be the x-axis)
4

Add Aggregations (Optional)

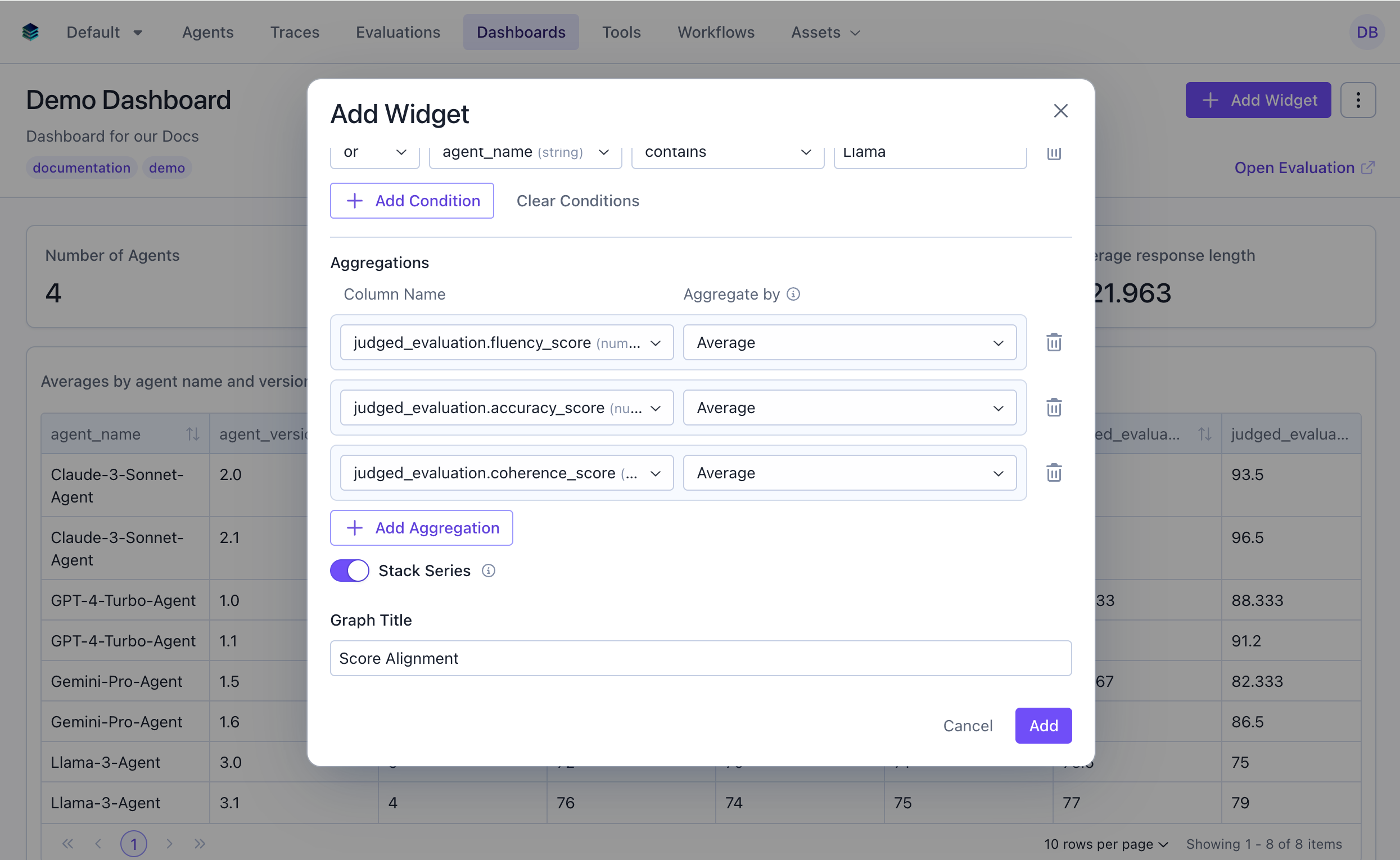

Histogram Aggregation Builder
Add aggregations for the y-axis. If none specified, COUNT is used by default.
5

Add Filters (Optional)

Histogram Filter Builder
Optionally filter to specific subsets of data
6

Show Values on Bars (Optional)

For single-series histograms, toggle Show values on bars to render each bar’s value directly on the chart. This sets config.show_value_labels.
7

Create Widget

Click “Add” to generate the histogram

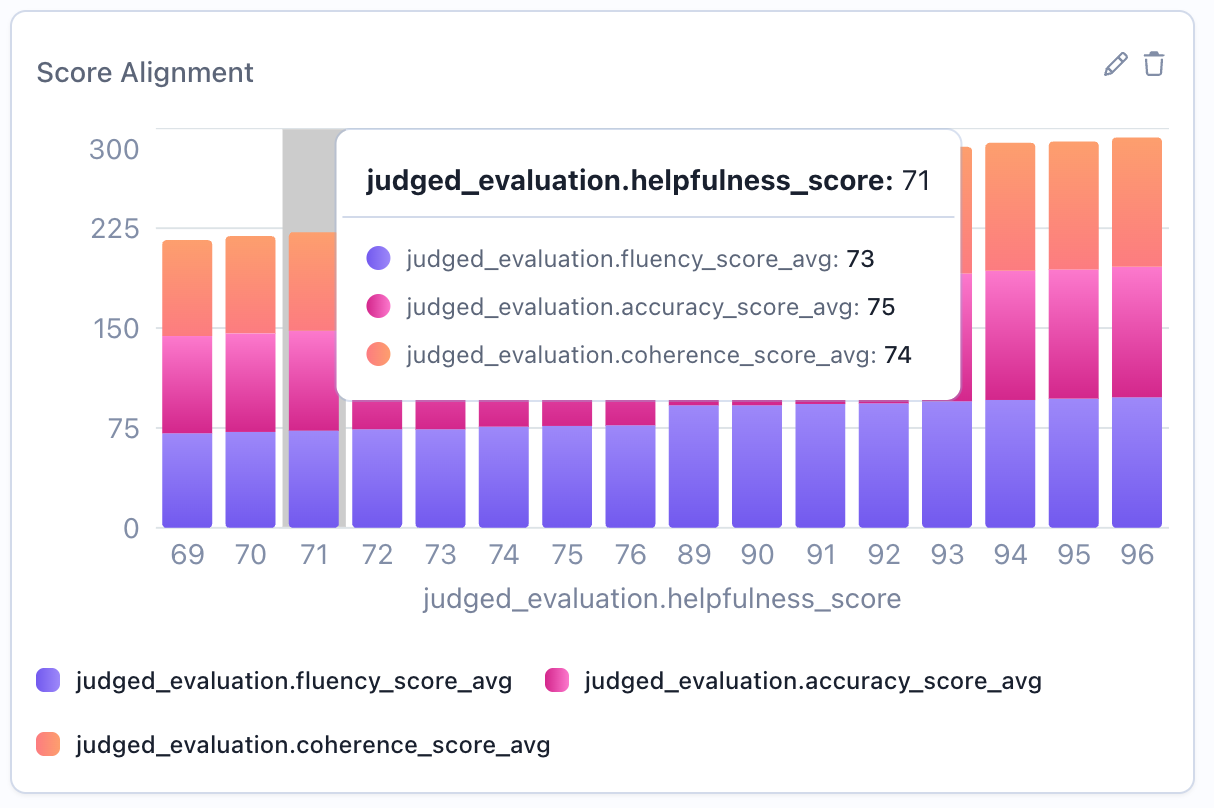

Created Histogram Widget

​
Output Format

Histogram widgets return grouped data:
{
  "type": "series",
  "data": [
    {"score": 75, "count": 12},
    {"score": 80, "count": 45},
    {"score": 85, "count": 89},
    {"score": 90, "count": 156},
    ...
  ]
}
Each data point represents a distinct value from the grouped column and its corresponding count or aggregated metric.

​
Example Use Cases

​
Use Case 1: Overall Score Distribution

Visualize how overall scores are distributed across all evaluations. This will by default show the count of evaluations for each score value.

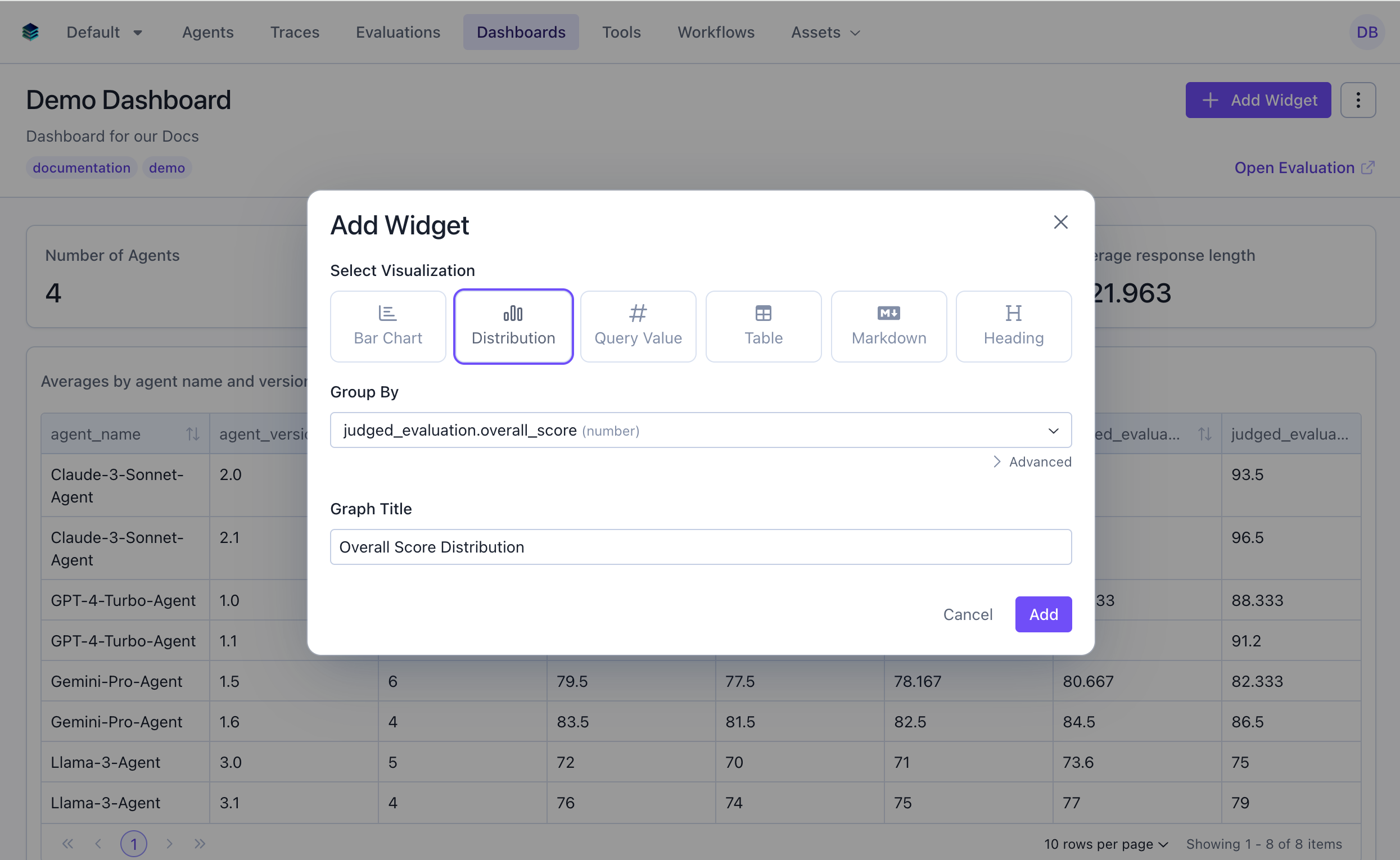

Overall Score Distribution Histogram
widget = client.evaluation_dashboards.widgets.create(
    dashboard_id=dashboard.id,
    title="Overall Score Distribution",
    type="histogram",
    query={
        "select": [
            {
                "expression": {
                    "type": "COLUMN",
                    "column": "overall_score",
                    "source": "data"
                }
            },
            {"expression": {"type": "AGGREGATION", "function": "COUNT", "column": "*"}}
        ]
        "groupBy": ["overall_score"]
    },
    config={
        "x_column": "overall_score"
    }
)

​
Use Case 2: Technical Task Score Distribution

Show distribution for evaluations in the technical category only.

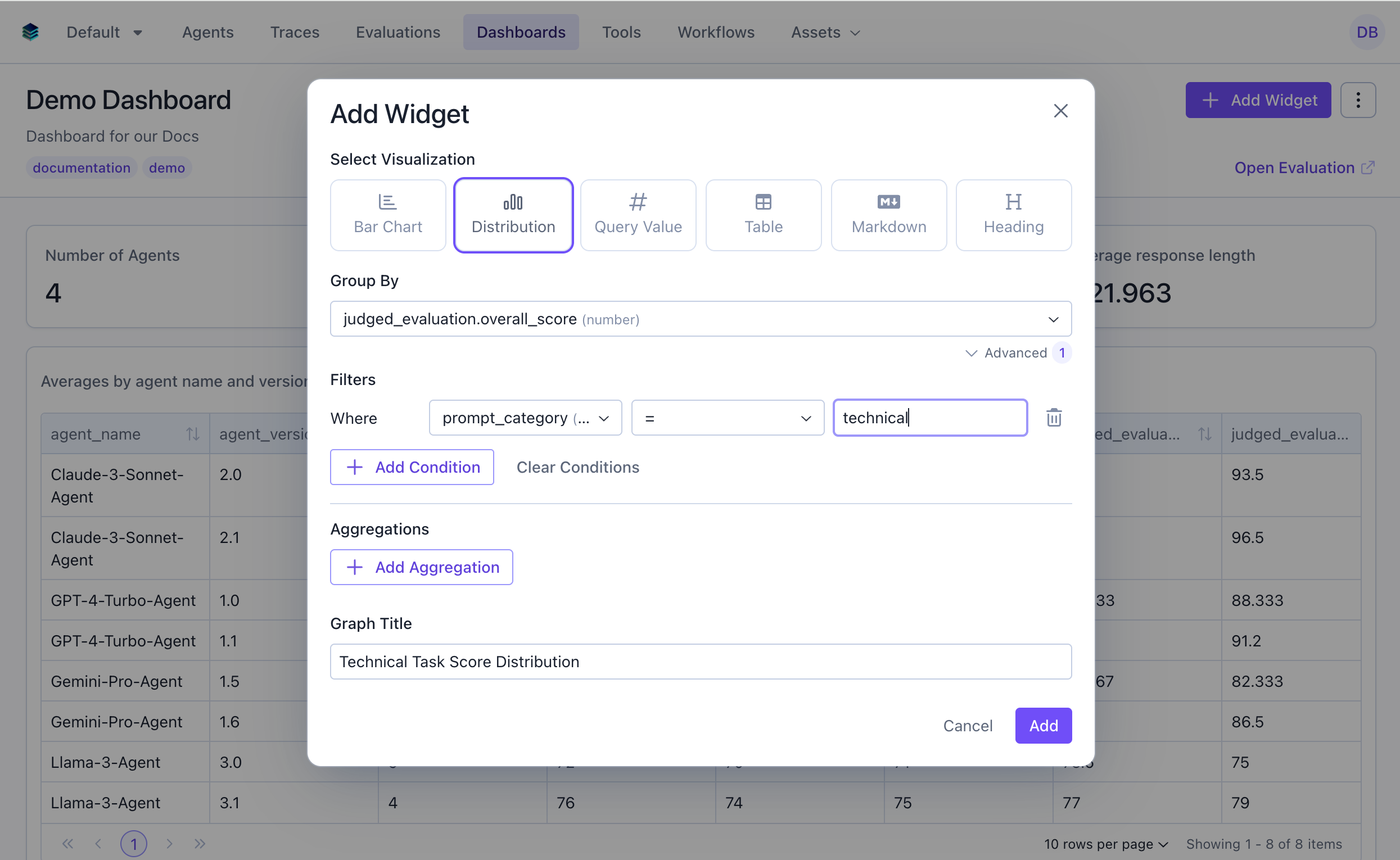

Technical Task Distribution
widget = client.evaluation_dashboards.widgets.create(
    dashboard_id=dashboard.id,
    title="Technical Task Score Distribution",
    type="histogram",
    query={
        "select": [
            {"expression": {"type": "COLUMN", "column": "overall_score", "source": "data"}},
            {"expression": {"type": "AGGREGATION", "function": "COUNT", "column": "*"}}
        ],
        "filter": {
            "conditions": [
                {"column": "prompt_category", "source": "data", "operator": "=", "value": "technical"}
            ]
        },
        "groupBy": ["overall_score"]
    },
    config={"x_column": "overall_score"}
)

​
Use Case 3: Comparing Distributions Across Categories

Create overlaid histograms to compare score distributions across different scores.

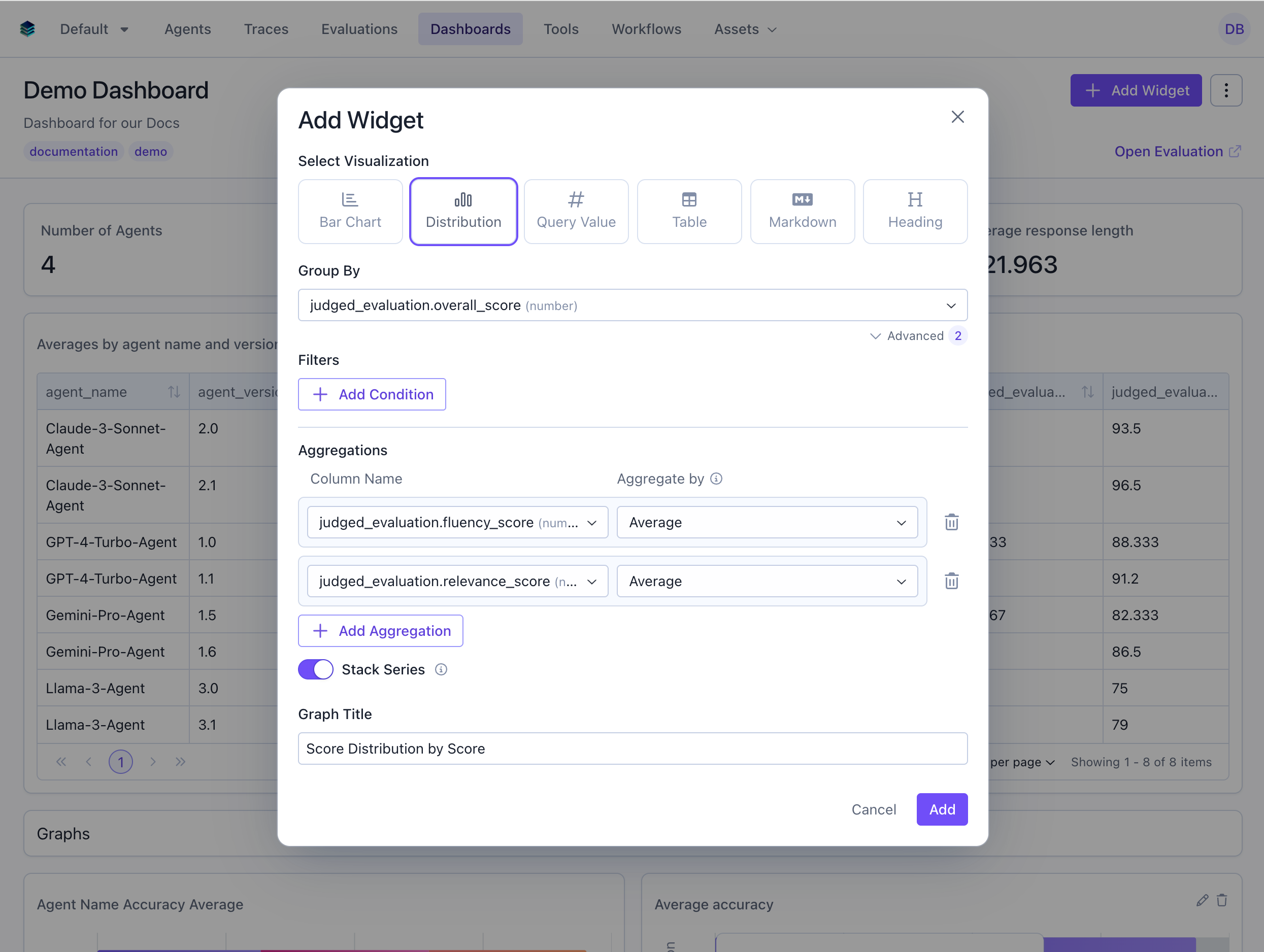

Grouped Histogram Comparing Agents
widget = client.evaluation_dashboards.widgets.create(
    dashboard_id=dashboard.id,
    title="Score Distribution by Score",
    type="histogram",
    query={
        "select": [
            {"expression": {"type": "COLUMN", "column": "overall_score", "source": "data"}},
            {"expression": {"type": "AGGREGATION", "function": "AVG", "column": "fluency_score", "source": "data"}},
            {"expression": {"type": "AGGREGATION", "function": "AVG", "column": "relevance_score", "source": "data"}}
        ],
        "groupBy": ["overall_score"]
    },
    config={
        "x_column": "overall_score",
        "stacked": True
    }
)

​
Stacked vs Overlaid Distributions

When comparing distributions across groups, you can control visualization style:

​
Overlaid Distributions (Unstacked)

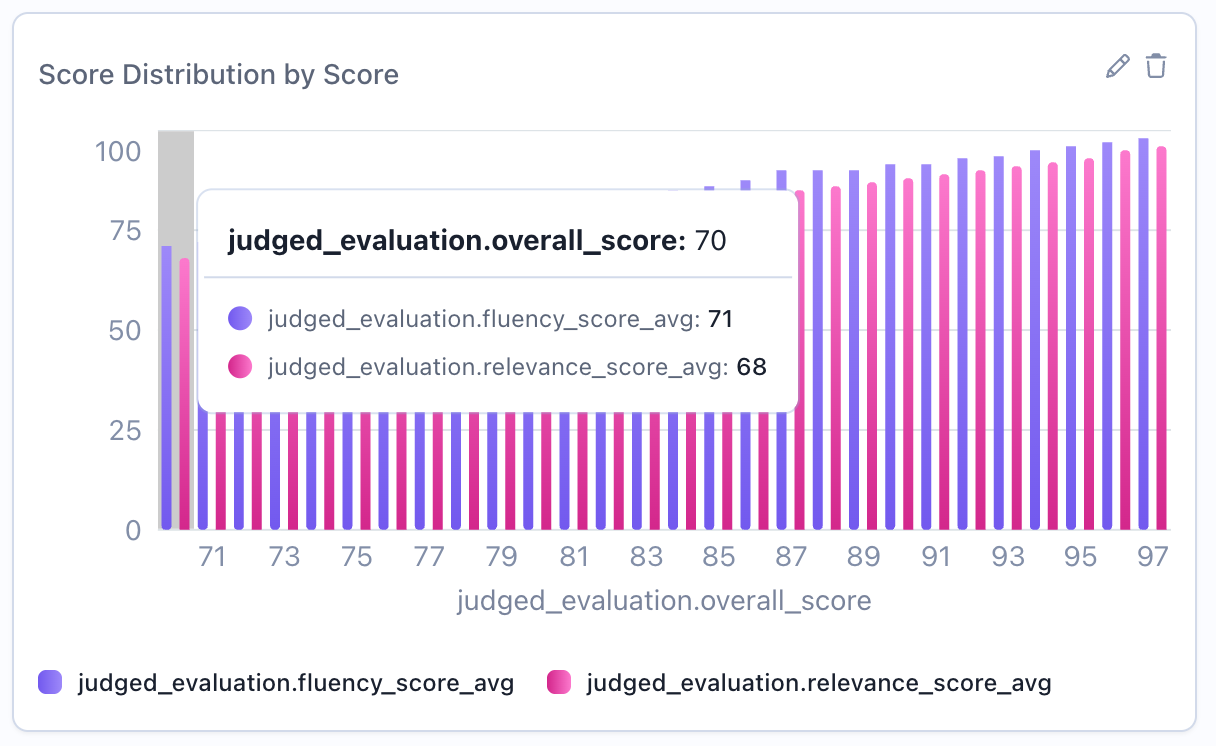

Overlaid Histogram
Multiple distributions shown with transparency, overlapping each other. Best for:
  • Comparing distribution shapes directly
  • Identifying differences in peaks and spread
  • Seeing all distributions simultaneously
config={"x_column": "overall_score", "stacked": False}

​
Stacked Distributions

Stacked Histogram
Distributions stacked vertically to show combined totals. Best for:
  • Showing total counts across all groups
  • Part-to-whole relationships
  • When cumulative view is meaningful
config={"x_column": "overall_score", "stacked": True}  # Default

​
Display Behavior

Histograms apply the following formatting automatically. These behaviors are built into the rendering, so there are no extra config fields to set.

​
Per-category colors

When a histogram has a single series and more than one bucket, each bar is given a distinct color from a rotating palette, making individual buckets easier to tell apart. Histograms with multiple series keep one consistent color per series instead, so the series stay comparable across buckets.

​
Humanized column names

Raw column names are converted to readable Title Case in axis labels, the legend, and tooltips (for example, overall_score becomes “Overall Score”). Aliases that already contain spaces are shown unchanged, so you can override the displayed text by aliasing a column in your query.
